Find Decals for the Yamaha R1

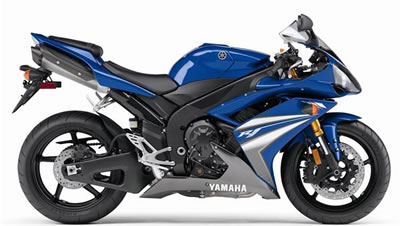

The Yamaha YZF-R1 2007 Model Specs

An all-new YZF-R1 for the 2007 model year was announced on 9 October, 2006. Key features include an all-new inline four-cylinder engine; going back to a more conventional 4-valve per cylinder rather than Yamaha's trade mark 5-valve genesis layout. Other new features are the Yamaha Chip Control Intake (YCC-I) electronic variable-length intake funnel system, Yamaha Chip Control Throttle (YCC-T) fly-by-wire throttle system, slipper-type clutch, all-new aluminum Deltabox frame and swingarm, six-piston radial-mount front brake calipers with 310 mm discs, a wider radiator, and M1 styling on the new large ram-air ports in the front fairing.







GENERAL

Model

Yamaha YZF-R1 2007

Category

Sport

ENGINE

Type

998 cc, liquid cooled, 4 - cylinders in line, 4-stroke

Bore x stroke (mm)

77 mm x 53.6 mm

Compression ratio

12.7:1

Valves

DOHC, 4 valves per cylinder

Fuel system

Fuel Injection with YCC-T and YCC-I

Ignition

Digital TCI

Power

180 hp (134.2 kW) @ 12500 rpm

Torque

112.7 Nm (83.1 ft. lbs) @ 10000 rpm

Lubrication system

Wet Sump

TRANSMISSION

Clutch

multi-plate slipper clutch

Gearbox

6 speed

Ratios

1e 38/15 (2.533), 2nd 33/16 (2.063), 3th 37/21 (1.762), 4th 35/23 (1.522), 5th 30/22 (1.364), 6th 33/26 (1.269)

Primary drive

65/43 (1.512)

Final drive

Chain, 45/17 (2.647)

Starting system

Electronic

CHASSIS

Frame

Aluminium die-cast Deltabox

Front suspension

43mm inverted telescopic fork w/adjustable preload, compression damping, rebound damping, 120 mm travel

Rear suspension

Single shock w/piggyback reservoir; adjustable for hi-/lo-speed compression damping, rebound damping, spring preload, 130 mm travel

Rake / Trail

24 degrees / 101.6 mm (4 inches)

WHEELS

Front tyre

120/70-17

Back tyre

190/50-17

Front brakes

dual 310 mm discs with radial-mounted 6-piston calipers

Rear brakes

single 220 mm disc with 1-piston calipers

DIMENSIONS

Overall length

2060 mm (81.1 inches)

Overall width

720 mm (28.3 inches)

Overall height

1110 mm (43.7 inches)

Seat height

835 mm (32.9 inches)

Wheelbase

1415 mm (55.7 inches)

Ground clearance

135 mm (5.3 inches)

Fuel capacity - reserve

18 l (4.8 gallon US) - 3.4 l (0.9 gallon US)

Dry weight

177 kg (390.2 pounds)

The above specifications are subject to change without notice.
