Find Decals for the Yamaha R1

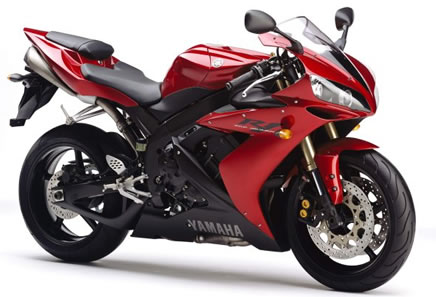

The Yamaha YZF-R1 2005 Model Specs

Overview
- Yamaha took to a major development. This included style updates like an underseat exhaust, and performance upgrades including radial brakes and for the first time on an R1 Ram-air intake. Furthermore, the wheelie-tendency known from earlier productions is drastically reduced by changing frame geometry and weight properties. The all new engine (no longer used as a stressed member of the chassis) featured a separate top crankcase and cylinder block.
Engine
Type: Liquid Cooled, in-line 4-stroke 4cyl
Valve arrangement: DOHC
Displacement: 998cc
Bore x Stroke: 77.0 x 53.6 mm
Power: 172.00 HP (128.3 kW)) @ 12500 RPM
Torque: 106.90 Nm (78.8 ft.lbs) @ 10500 RPM
Valves per cylinder: 5
Compression ratio: 12.3:1
Fuel System: Fuel Injection Dual Valve throttle bodies with motor driven secondary valves
Ignition Digital:Digital TCI
Transmission
Type: 6-speed w/multi-plate clutch
Starting System: Electronic
Gear Ratio - 1st Gear: 2.533
Gear Ratio - 2nd Gear: 2.063
Gear Ratio - 3rd Gear: 1.762
Gear Ratio - 4th Gear: 1.522
Gear Ratio - 5th Gear: 1.364
Gear Ratio - 6th Gear: 1.269
Primary Drive: 68/43 (1.581) chain
Final Drive: 43/17 (2.647) chain
Chassis
Frame: Deltabox V out of Aluminium
Front Suspension: 43mm inverted telescopic fork w/adj. preload, compression and rebound damping; 120 mm (4.7 inches)
Rear Suspension: Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 5.1" travel (130mm)
Front Brake: Dual 320 mm with radially mounted 4 piston calipers
Rear Brake: Single 220 mm (8.7 inches) disc with one piston clipers
Front Wheel: 3.50 x 17 in., cast aluminum
Rear Wheel: 6.00 x 17in., cast aluminum
Front Tyre: 120/70-ZR17 M/C 58W
Rear Tyre: 190/50-ZR17 M/C 73W
Dimensions
Height: 43.5" (1,105mm)
Length: 81.3" (2,065mm)
Width: 28.3" (720mm)
Rake/Trail: 24.0/3.8 in.(97mm)
Wheelbase: 54.9 in (1395mm)
Seat Height: 32.9 in. (835mm)
Fuel Capacity: 4.8 gallons (18 liters)
Weight: 172.0 kg (379.2 pounds)
Performance
Horsepower: 172.00 HP (128.3 kW)) @ 12500 RPM
Torque: 106.90 Nm (78.8 ft.lbs) @ 10500 RPM
