Find Decals for the Yamaha R1

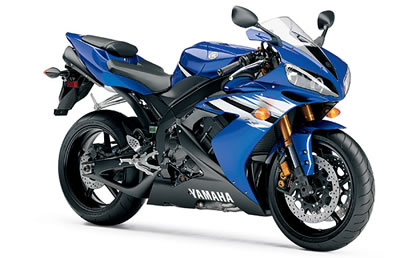

The Yamaha YZF-R1 2006 Model Specs

Yamaha YZF-R1 2006: technical specifications



GENERAL
Model Yamaha YZF-R1 2006
Category Sport
ENGINE
Type 998 cc, liquid cooled, 4 - cylinders in line, 4-stroke
Bore x stroke (mm) 77 mm x 53.6 mm
Compression ratio 12.3:1
Valves DOHC, 5 valves per cylinder
Fuel system Fuel injection, dual-valve throttle bodies with motor-driven secondary valves
Ignition Digital TCI
Power 175 hp (130.5 kW) @ 12500 rpm
Torque 107.1 Nm (79 ft. lbs) @ 10500 rpm
Lubrication system Wet sump
TRANSMISSION
Clutch multi-plate clutch
Gearbox 6 speed
Ratios 1e 38/15 (2.533), 2nd 33/16 (2.063), 3th 37/21 (1.762), 4th 35/23 (1.522), 5th 30/22 (1.364), 6th 33/26 (1.269)
Primary drive 65/43 (1.512)
Final drive Chain, 45/17 (2.647)
Starting system Electronic
CHASSIS
Frame Deltabox V out of aluminium
Front suspension 43mm inverted telescopic fork w/adjustable preload, compression and rebound damping, 120 mm travel
Rear suspension Single shock w/adjustable preload, compression damping, rebound damping, 130 mm travel
Rake / Trail 24 degrees / 97 mm (3.8 inches)
WHEELS
Front wheel 3.50
Rear wheel 6.00
Front tyre 120/70-17
Back tyre 190/50-17
Front brakes dual 320 mm discs with radial-mounted 4-piston calipers
Rear brakes single 220 mm disc with 1-piston calipers
DIMENSIONS
Overall length 2085 mm (82.1 inches)
Overall width 720 mm (28.3 inches)
Overall height 1105 mm (43.5 inches)
Seat height 835 mm (32.9 inches)
Wheelbase 1395 mm (54.9 inches)
Ground clearance 135 mm (5.3 inches)
Fuel capacity - reserve 18 l (4.8 gallon US)
Dry weight 172 kg (379.2 pounds)
The above specifications are subject to change without notice.
