We can make decals and graphics for your Yamaha R6, let us know what you need
We manufacture the highest quality Sports and Motorbike decals, logos, insignia & graphics. All of our products are made from the highest quality vinyl which has a 7 year outdoor life. They can be applied to any smooth surface and can be clear-coated

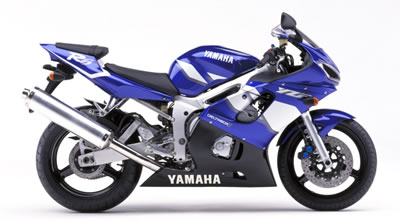

The Yamaha YZF-R6 2002 Model Specs

Engine Click for more detail
Type 599 cc, Liquid cooled, 4 - cylinders in line
Bore x stroke (mm) 65,5 x 44,5
Compression ratio 12.4:1
Stroke 4-stroke
Valve train DOHC
Valves per cylinder 4
Fuel system 37mm Keihin CV Downdraft Carburetors (4)
w/throttle position sensor (TPS)
Ignition Digital DC-CDI
Transmission Chain
Gears 6 speed
Power (Hp/rpm) 120 / 13000 (crank)
Torque (Nm/rpm) 68.1 / 11500
Chassis Click for more detail
Brakes front dual 298mm discs with 4-piston calipers
Brakes rear single 220mm disc with 2-piston calipers
Tires front 120/60-17
Tires rear 180/55-17
Suspension Click for more detail
Front Suspension 43mm fully adjustable telescopic.
Rear Suspension Truss-type aluminum swinging arm monocross.
Dimensions
Length 2025mm
Width 690mm
Height 1105mm
Seat Height 820 mm
Wheelbase 1380mm
Fuel Capacity - reserve 17 ltr
Dry Weight 169 kg
Other Click for more detail
Rake (Caster Angle) 24.0
Trail3.19"
Oil Capacity (with oil filter change) 2.85 qt.
Main Jet #1,4: #152 #2,3: #148; CA mdl = #148
Main Air Jet #110
Jet Needle #1,4: N7SB #2,3: N7SA; CA mdl = #1,4: N7SD #2,3: N7SE
Needle Jet 2.6
Pilot Air Jet 1 #1,4: #105 #2,3: #110
Pilot Outlet 0.9
Pilot Jet #38; CA mdl = #35
Primary Reduction Ratio 86/44 (1.955)
Secondary Reduction Ratio 48/16 (3.000); CA mdl = 46/16 (2.875)
Gear Ratio - 1st Gear 37/13 (2.846)
Gear Ratio - 2nd Gear 37/19 (1.947)
Gear Ratio - 3rd Gear 28/18 (1.556)
Gear Ratio - 4th Gear 32/24 (1.333)
Gear Ratio - 5th Gear 25/21 (1.190)
Gear Ratio - 6th Gear 26/24 (1.083)
